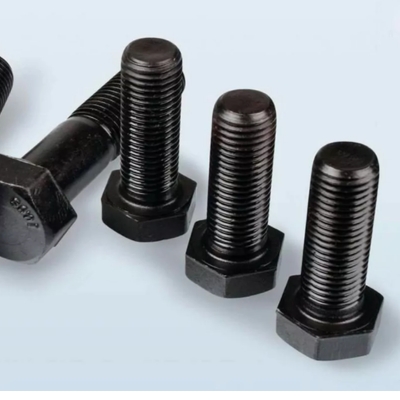

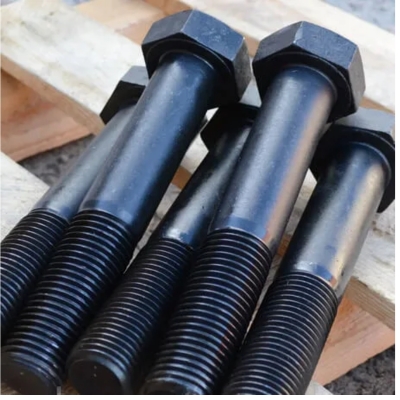

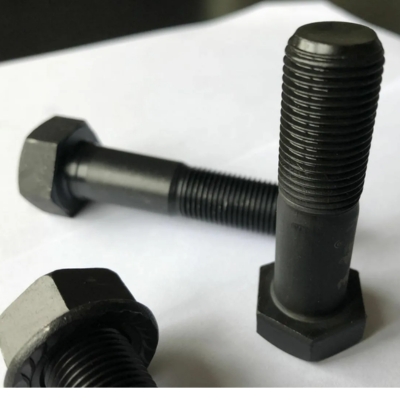

High Tensile Bolts 10.9
Grade 10.9 Bolts are high-tensile fasteners manufactured from carbon steel and low-boron steel. These bolts undergo a heat treatment process involving quenching and tempering, which enhances their strength and durability. Natron Pipe Tube is a prominent manufacturer and supplier of Grade 10.9 High Tensile Bolts, offering a wide range of dimensions and types to meet diverse application needs. Crafted to provide exceptional tensile strength, these bolts are engineered to perform reliably in demanding industrial environments.
High Tensile Bolt 10.9, High Tensile Bolts 10.9, High Tensile Hexagon Head Bolt 10.9, High Tensile Bolts 10.9 Supplier and Manufacturer in Mumbai, India
As a manufacturer of Grade 10.9 High Tensile Bolts, we supply these bolts to a broad array of industries, each with unique applications. Our High Tensile 10.9 bolts find use in railroad equipment, air compressors, propellers, and various processing machinery. Customers appreciate our products for their exceptional quality and durability. Produced in line with international standards, these bolts are meticulously engineered to perform optimally, even under challenging conditions.
Specification of High Tensile Bolts Grade 10.9
| Specification | |
|---|---|
| Grades | Grade 10.9 Bolt |
| Standard | ASTM A324, ASME SA324 |
| Size | Dia M 20 to 100 mm Inch 3/4" to 3.1/2" |
| finish | Zinc plated / Plain / Hot dip galvanised |
Grade 10.9 High Tensile Bolts are designed to withstand high-stress environments, making them ideal for applications requiring robust fastening solutions. These bolts offer a high yield strength and superior resistance to wear, ensuring stability and reliability over time. Their excellent mechanical properties make them well-suited for critical operations, where both strength and longevity are paramount. By adhering to strict quality control measures during production, we ensure each bolt meets industry standards, providing clients with a product they can trust in demanding applications.
High Tensile Bolts 10.9 Chemical Composition
| High Tensile Bolt 10.9 | C | P | S | B |
|---|---|---|---|---|
| 0.20-0.55 | 0.025 | 0.025 | 0.003 |
High Tensile Bolts 10.9 Mechanical Strength
| Grades | Size Range | PS [MPa] | YS (min) [MPa] | TS (min) [MPa] | Hardness [Rockwell] |
|---|---|---|---|---|---|
| Class 10.9 | 5–100 | 830 | 940 | 1040 | C33–39 |
High Tensile Bolts 10.9 Dimensions Schedule Chart
| Diameter | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pitch | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
|
Across Flat (S) Max Minimum | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 | 510.9 | 63.1 | 68.1 | 73.1 | 78.1 | |
|
Thickness (M) Max Minimum | 3.2 | 4.7 | 5.2 | 6.8 | 8.4 | 10.8 | 12.8 | 14.8 | 15.8 | 18 | 19.4 | 21.5 | 23.8 | 25.6 | 28.7 | 31 | 33.4 | 34 | 36 | 38 | 42 |
| 2.9 | 4.4 | 4.9 | 6.44 | 8.04 | 10.37 | 12.1 | 14.1 | 15.1 | 16.9 | 18.1 | 20.2 | 22.5 | 24.3 | 27.4 | 29.4 | 31.8 | 32.4 | 34.4 | 36.4 | 40.4 | |
| Across corners (E) Min | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.35 | 26.75 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 |
| Minor Dia at thread (min) | 3.242 | 4.134 | 4.917 | 6.647 | 8.376 | 10.106 | 11.835 | 13.835 | 15.294 | 17.294 | 19.294 | 20.752 | 23.752 | 26.211 | 29.211 | 31.67 | 34.67 | 37.129 | 40.129 | 42.587 | 46.587 |
| Minor Dia at thread (maximum) | 3.422 | 4.334 | 5.153 | 6.912 | 8.676 | 10.441 | 12.210 | 14.210 | 15.744 | 17.774 | 19.774 | 21.252 | 24.252 | 26.771 | 29.771 | 32.27 | 35.27 | 37.799 | 40.799 | 43.297 | 47.297 |
